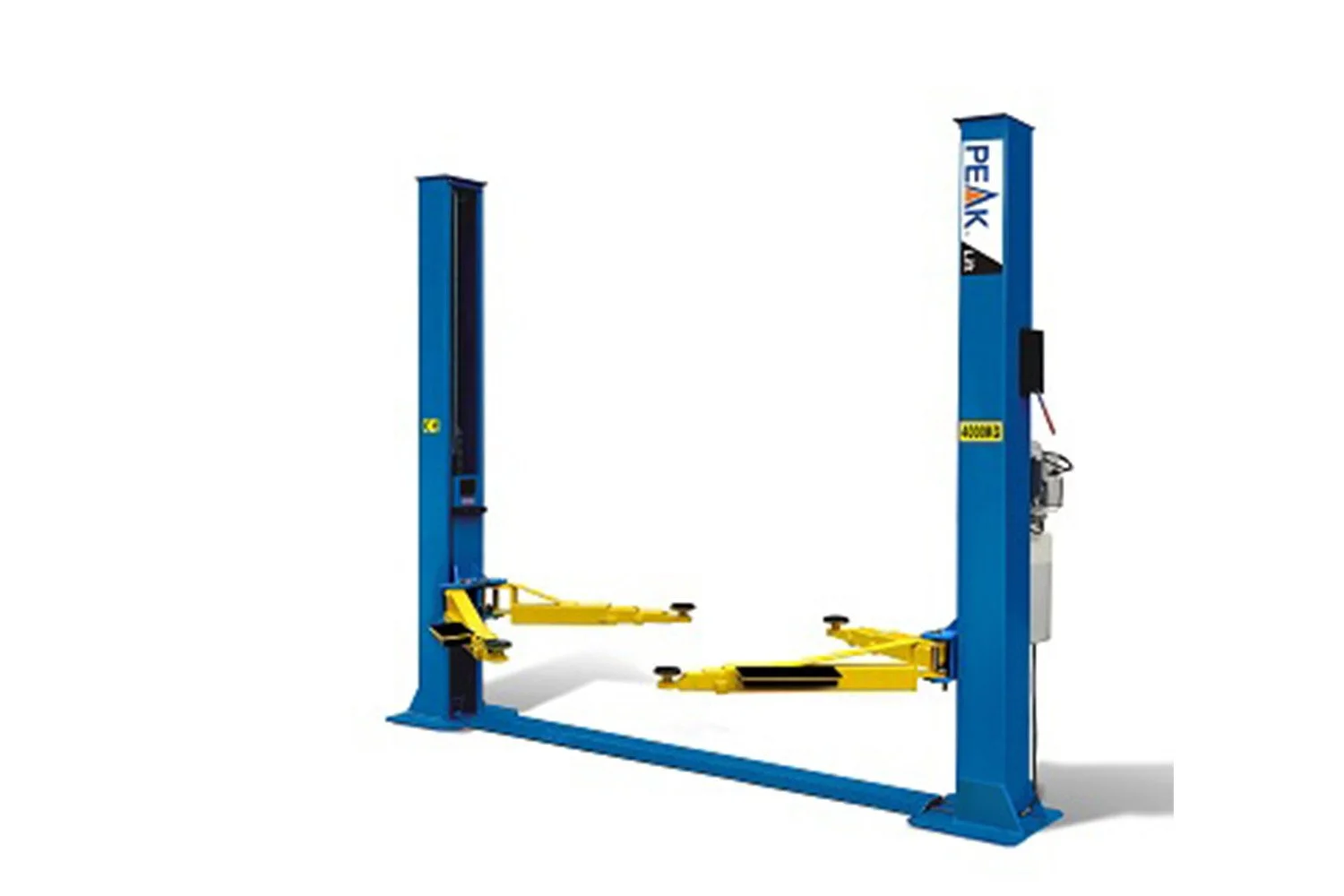

Base plate two post lift

The PEAK 209 boasts PEAK's unique auto-engaged double lock and single-point lock release mechanism. It also includes 4-three stage arms to accommodate a wider range of vehicles. This base plate design is perfect for low ceiling workshops. PEAK 209 is the specialist for your diversify  lifting demands.

• 4000kg (9,000 lbs) capacity;

• Base plate design, provides an open top which is ideal for low ceiling or taller vehicles;

• Exclusive feature: single-point manual lock release mechanism, disengages both columns simultaneously from one side;

• Four 3-stage arms are suitable for more vehicle;

• Revolutionary patented double-lock system is equipped in both columns;

• Aero cables are used for synchronization;

• Self-lubricating UHMW polyethylene sliders and bronze bush;
• Dual chain-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;

• Single-screw rubber pad with pin dia 38mm, comes with 3" extension adapter;

• Automatic arms restraints;

• Toe guards and tool trays come as standard.

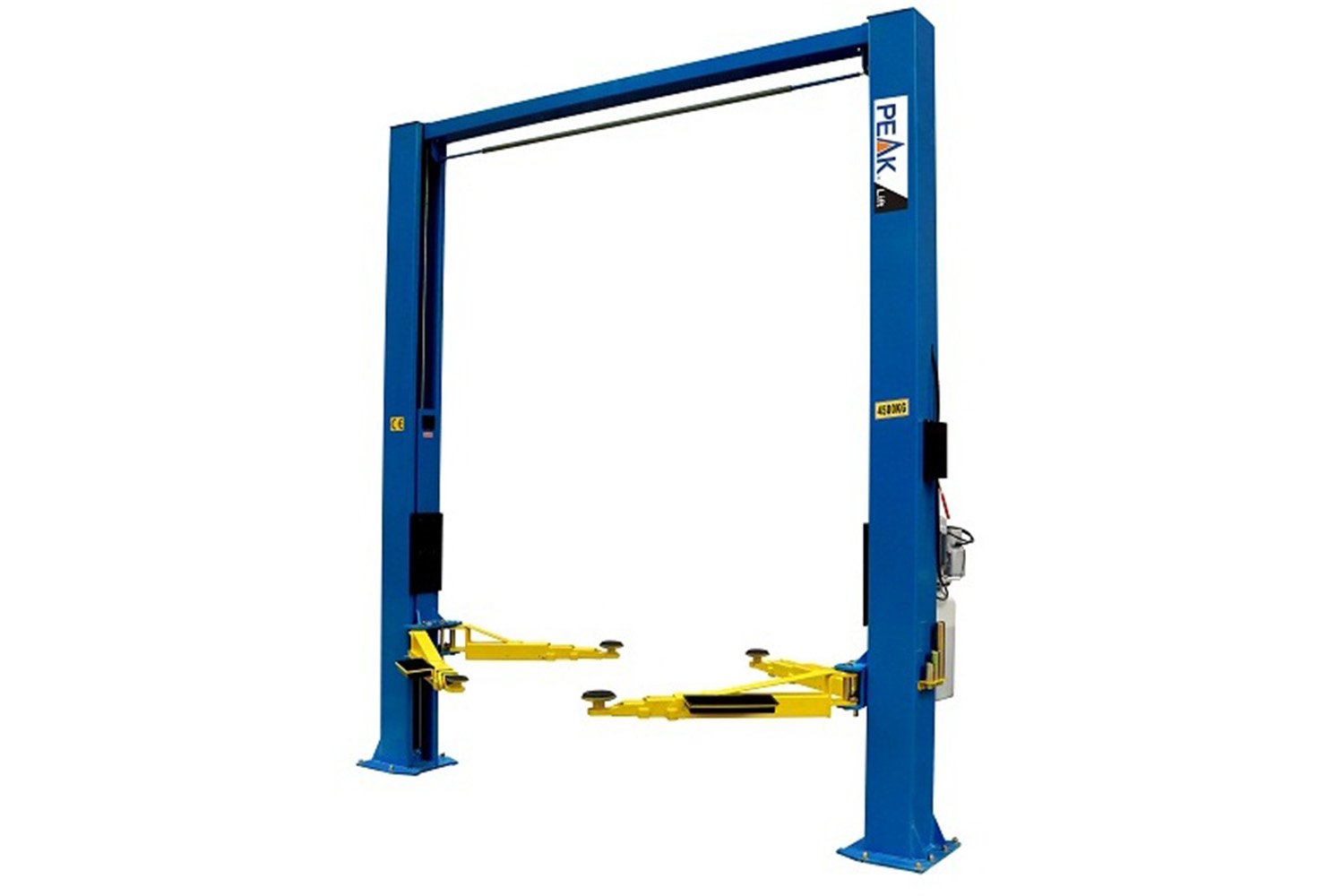

Clear Floor two post lift

The time-proven best

PEAK 210C is widely regarded as one of the top-tier commercial-grade lifts, and it continues to improve with time.  It embodies PEAK's standard of world-class car lift. Features with extremely long carriages, 4 three-stage arms, manual single-point lock release mechanism, aero cables etc., 210C offers powerful perfomance to support your daily busy business. Whether commercial shop owner or a home garage enthusiast, PEAK 210C is the best two-post lift for you.

• 4500kg (10,000 lbs) capacity;

• Clear-floor design, provides an unobstructed floor use;

• Exclusive feature: single-point manual lock release mechanism, disengages both columns simultaneously from one side;

• Four 3-stage arms are suitable for more vehicle;

• Overhead safety shut-off device prevents vehicle damage;

• Extremely long carriages are equipped to enhance the stability and durability;

• Aero cables are used for synchronization ;

• Self-lubricating UHMW polyethylene sliders;

• Dual direct-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;

• Double-screw rubber pad with pin dia. 50mm, comes with 3" extension adapter;

• Automatic arms restraints;

• Toe guards and tool trays come as standard.

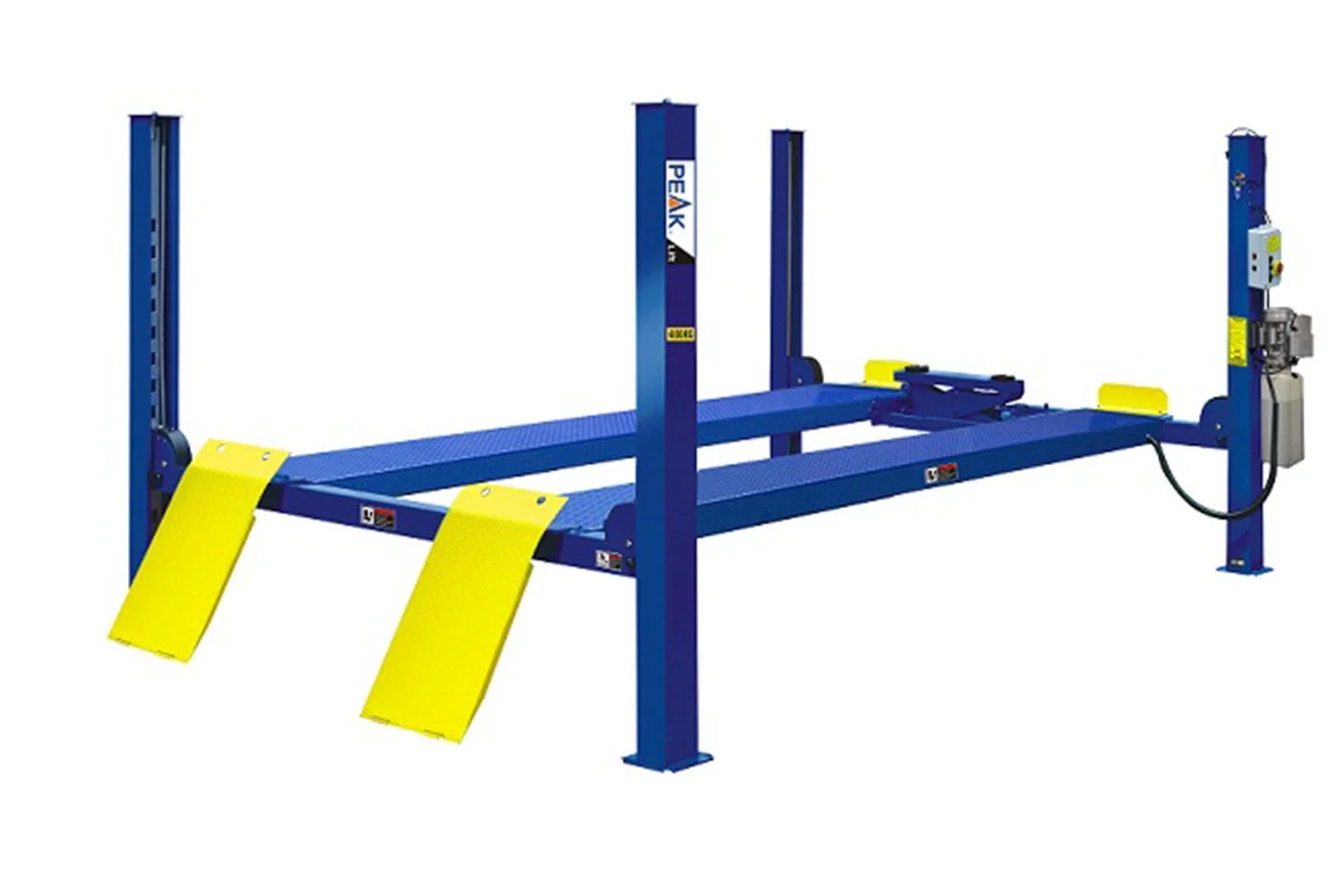

ALIGNMENT FOUR-POST LIFT

Ultimate versatility

Features all advantages of Peak 409, the  409A is beyond to raise also your alignment business. It's full of power and reliability to expand coverage from cars, light trucks and motor homes.

• Lifting capacity: 4000KG, CE certified.

• 24V electrical control operation system.

• High quality hydraulic cylinder design and manufactured at high standard.

• Mechanical self-locking and air-release safety lock system.

• Dual safety devices  mechanism: both primary safety locks and cable-slack protection system.

• Non-skid diamond platforms.

• Stepless adjustable width between platforms.

• Adjustable turnplate pockets to fit various wheel bases.

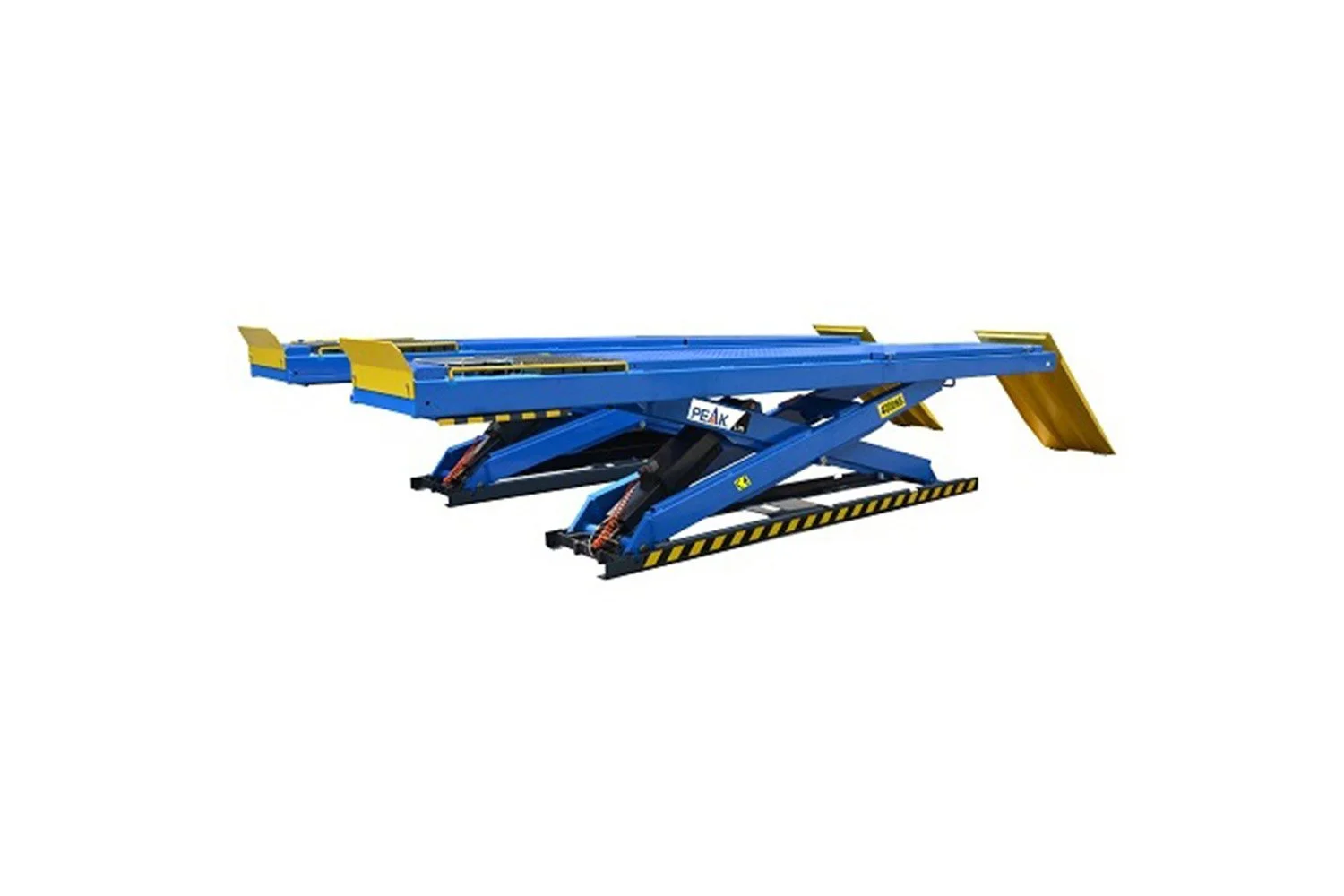

Alignment scissors lift

Extraordinary Reliability

PX09A offers all the advantages of PX09 including the Peak X scissors, making it the perfect platform performing alignment taskes on a variety of vehicles, from passenger cars to vans and light trucks, providing stability, reliability, and convenience. It includes integrated rear slip-plates, a pull-out tool tray, and adjustable turnplate blocks to fit different wheelbases.

• Dual synchronous cylinders are applied to assure the lifting level on both Platforms.

• Electro-air control system, mechanical safety locks.

• Skid proof diamond runway.

• Integrated rear slip-plates.

• Heavy duty design,the X serial scissors lifts use large steel tube to make it strong

  and assure the runways remain level during working.

• Optional Jack and Turnplate.

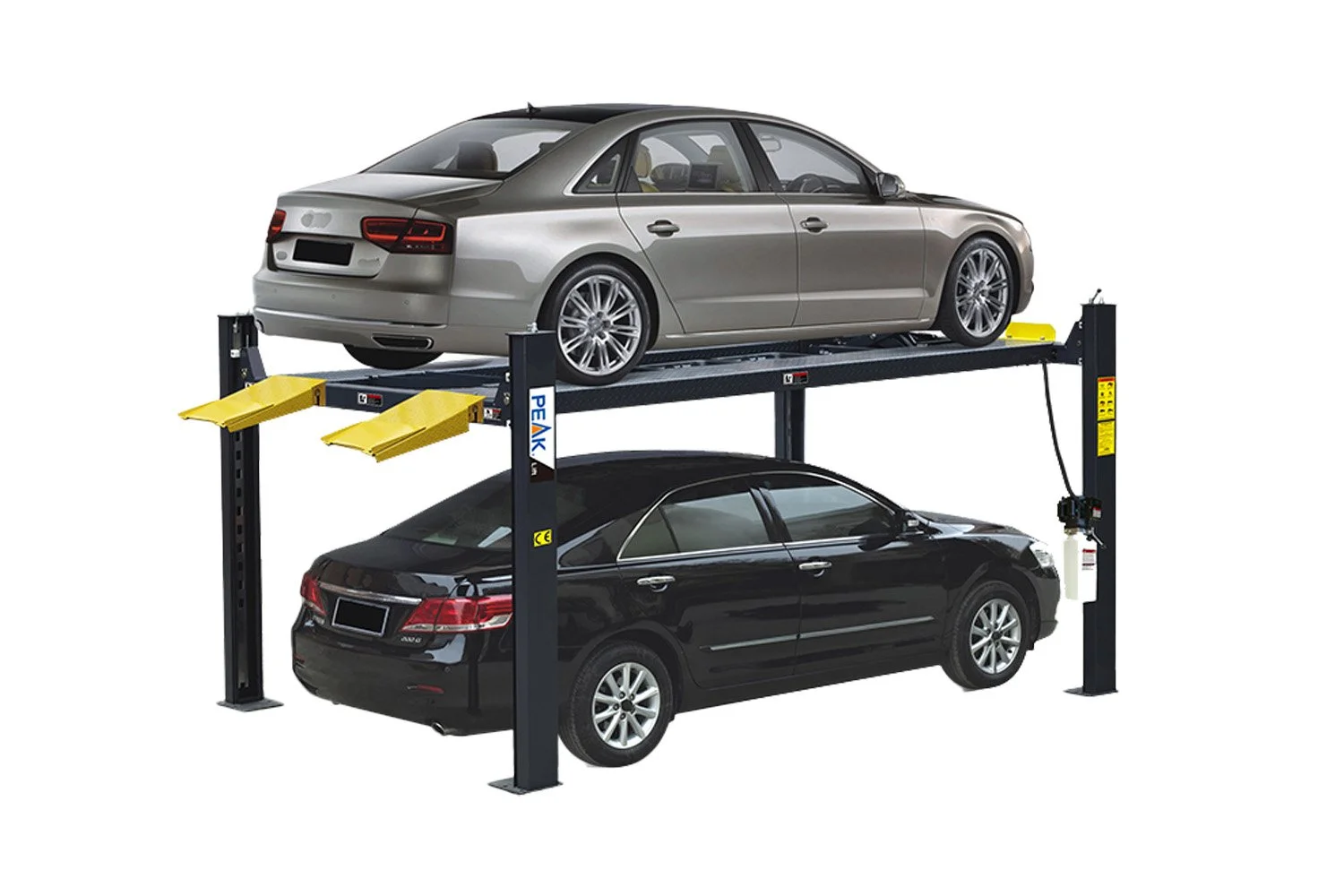

4-POST PARKING LIFT

This 408-P is the perfect lift for residential and commercial shops alike. It can handle vehicles up to 3500kg and requires no anchors to your concrete. This lift is easy to install and operate，and is built to the hightest quality standard.The PEAK 408-P is one of the best 4-post lifts on the market.Add on additional caster kits，and simply roll the lift to a new location.

• 3500kg lifting capacity

• PEAK exclusive hidden safety locks and manual single-point lock release

• Multi safety locks in each column

• Adjustable lock ladder

• Dual safety device: In case the primary safety locks are out of operation,the lift would also be locked automatically by a secondary safety device

• Double- shaped columns for increased strength

• Non-slip platform

• Flexible: Power side column can be installed at any corner

• Portable: it can be moved easily by using the optional caster kits

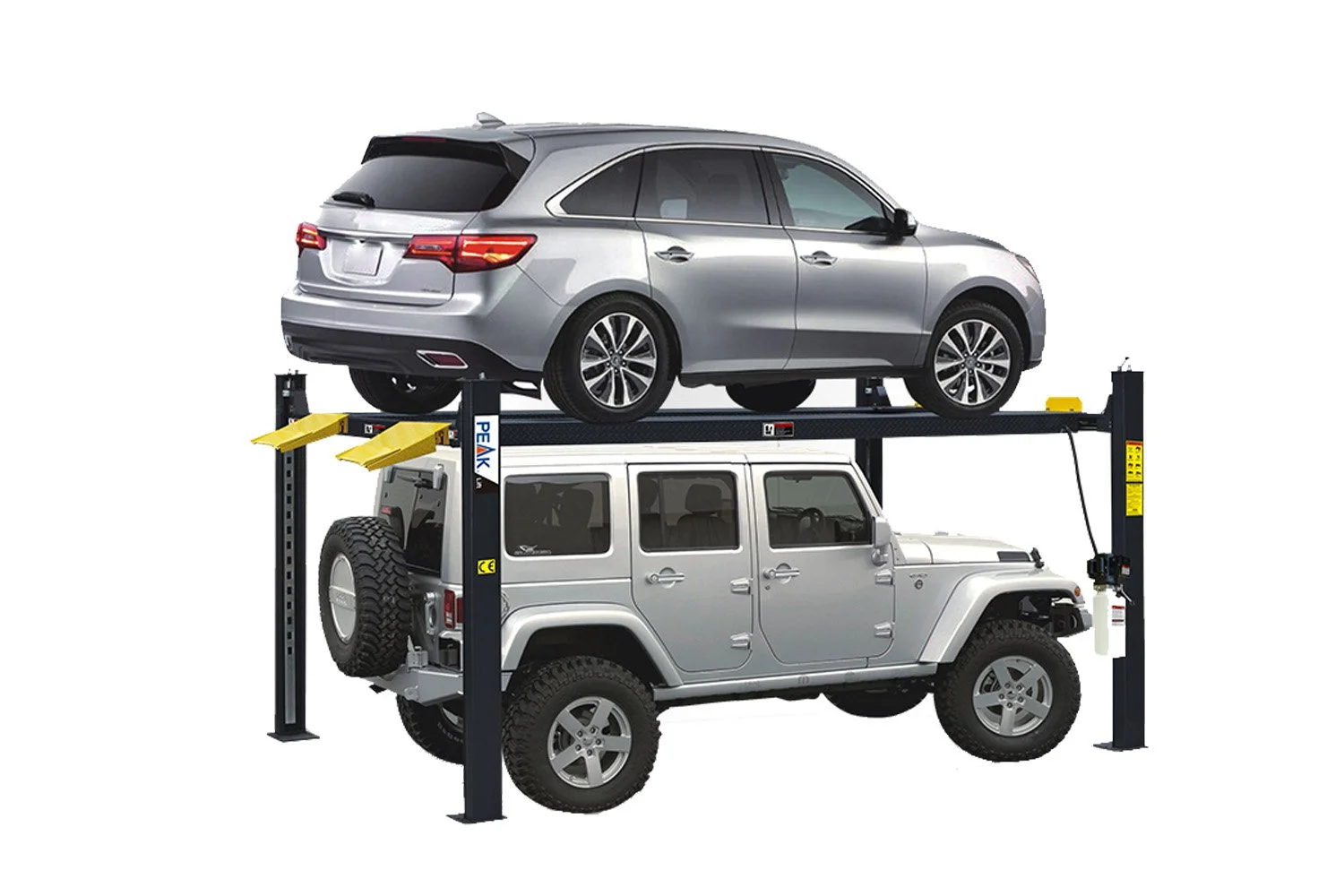

4-POST PARKING LIFT

 A parking lift for full range vehicle including car, SUV and light truck. Similar to model

408-HP,but longer,wider and heavier.• 4000kg lifting capacity

• PEAK exclusive hidden safety lock and manual single-point release device

• Multi safety locks in each column

• Adjustable lock ladder

• Double-  shape columns for increase the columns strength

• Non-slip platform

• Standard configuration with 4 wheel stops which is more safe

• Flexible: Power side column can be installed at any Corner

• Portable: it can be moved easily by using the optional caster kits

DOUBLE PARKING 4-POST LIFT

The higher and longer version of 409-DP to park higher vehicles such as SUV or light truck underneath the platforms.

• Lifting capacity: 4000KG,  max car weight:2800kg.

• Max lifting height:2222mm.

• Peak exclusive hidden safety locks and manual single-point safety release.

• Designed with primary safety locks and slack-cable safety locks.

• Double-  Shaped columns for increased strength.

• Low profile design, minimum height only 140mm.

• Non-slip diamond platforms.

• Adjustable multiple safety ladders.

• Ingenious cross beam design, minimizes the package size, reduces the transportation

 and storage cost.

• Exclusive: Foldable drive-on ramps as standard ( each lift 4 units)

• Exclusive: designed with pull rope.

4T Manual Single Point unlocking two post lift

Capicity: 4000kg
Lifting height: 1800mm
Lifting time: 55S ?optional?
Overall width: 3477mm
Inside column : 2940mm
Voltage: 380V/220V/110V /50Hz-3Phase(optional)
Motor power: 2.2KWtion goes here

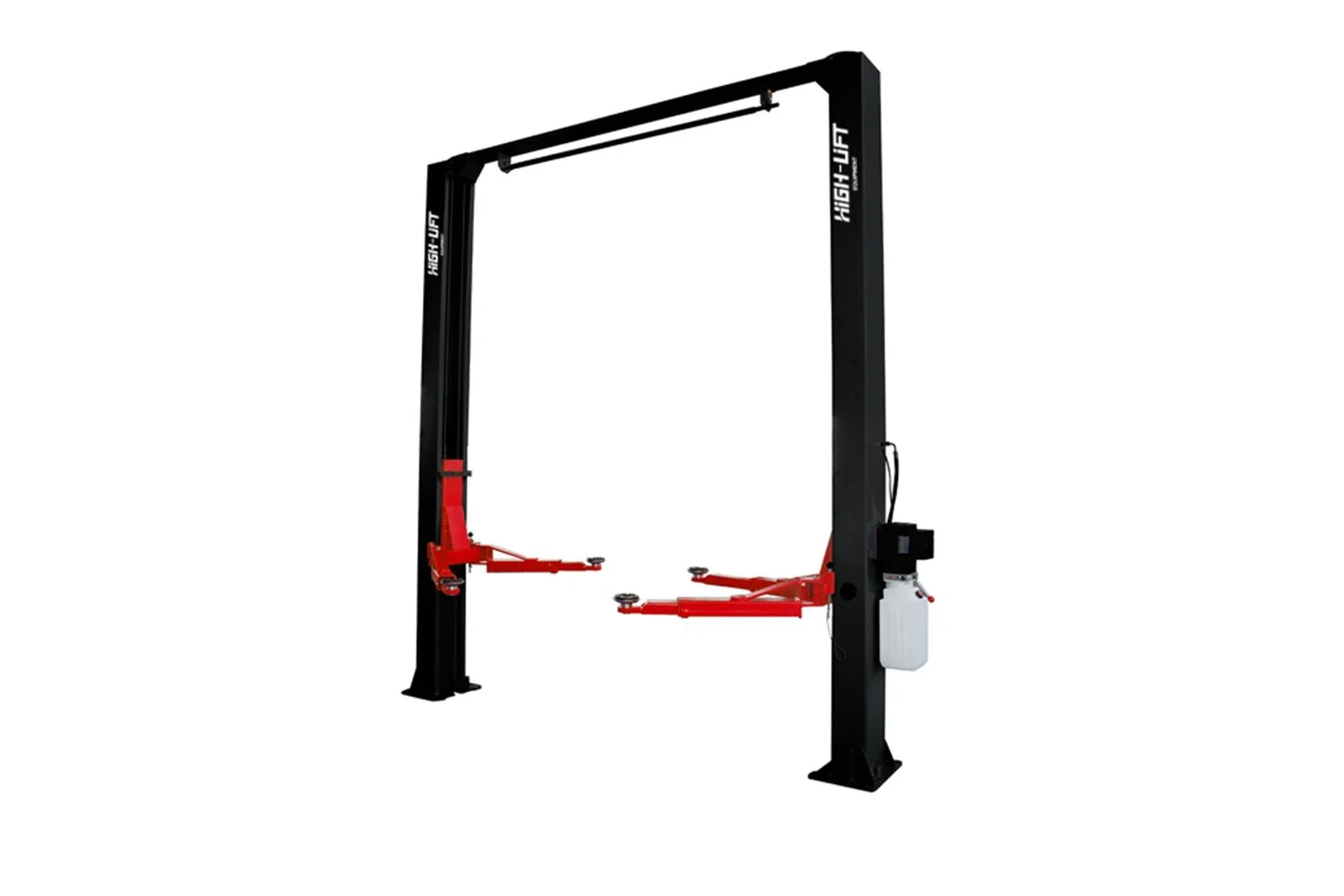

4T Manual Single Point unlocking Clear Floor two post lift

Capacity: 4000kg
Lifting height: 1800mm
Lifting time: 55S ?optional?
Overall width: 3437mm
Inside column : 2900mm
Voltage: 380V/220V/110V /50Hz-3Phase(optional)

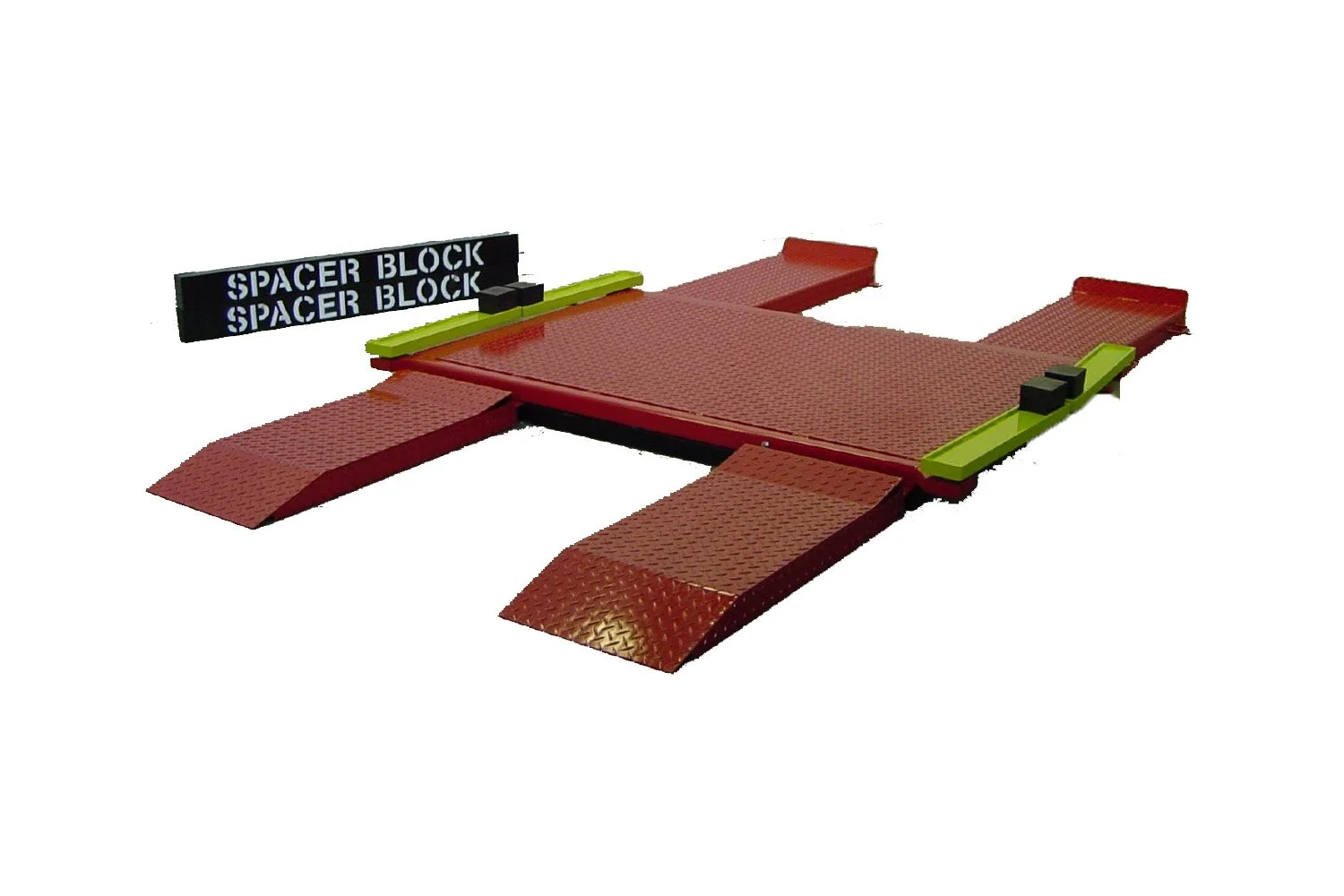

A bellows lift suitable for all cars, bakkies and 4x4’s

Heavy duty construction – low maintenance

Safety locking mechanism at various heights

Stainless steel safety lock control cylinder

SPECIFICATIONS

LIFT CAPACITY:                        3500 KGS

MAX LIFT HEIGHT:                    700 MM

AIR PRESSURE REQUIRED:      3 – 5 BAR

WEIGHT:                                   695 KG

Standard delivery includes 4 rubber blocks, 4 adjustable corner mounted arms, 2 spacer bars for 4x4 vehicles.

Drive-over option available.
