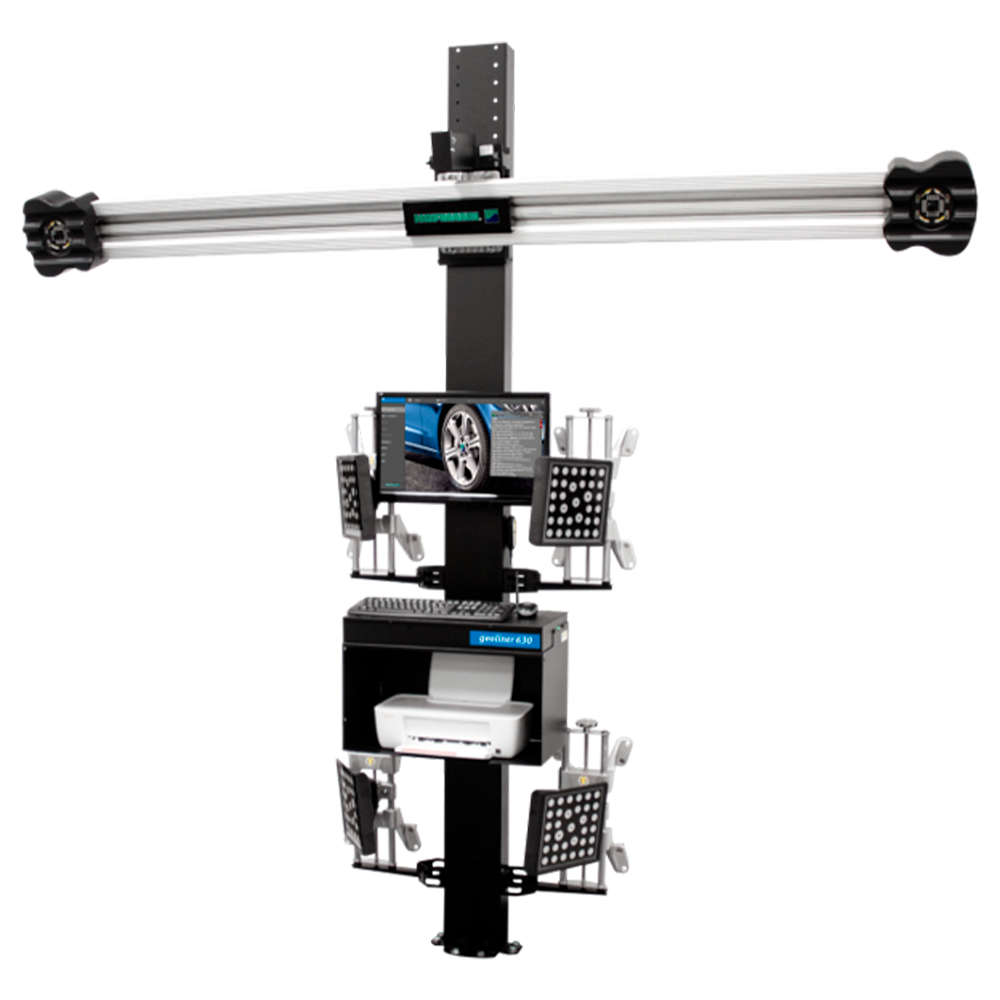

The geoliner® 630 can benefit from the Next Generation User Interface, designed for maximum clarity and accessibility. Online connectivity for automatic software and specification updates.

Accurate and repeatable readings in under 2 minutes

Online connectivity for automatic software and specs updates

Portable remote display

Mainstream alignment features

Tilt, wall and fixed beam options

Easy installation and service

Wireless remote display support with connection to many consumer devices

Improved installation flexibility with camera beam and printer shelf connected by up to 50m long ethernet cable

No need for RCP bar for easier and faster service

Standard Equipment:

- Wheel Aligner machine

- Next generation software

- AC100 wheel clamps with 3D targets

- Electronics Shelf

       - Host Controller
       - Keyboard and Mouse
       - Color Printer

- 22” Wide-screen monitor

Standard Accessories:

- Steering Wheel Holder
- Brake Pedal Depressor
- Colour Ink-Jet Printer
- Wheel Chocks

VH (Variable Height) - Horizontal beam with camera can be fixed at any desired level. Designed to perform alignment on Scissor lift, Four Post Lift and Pit .

Vision based 3D Imaging technology using 2 High Performance SI (Scientific Image) Camera

Simultaneous Front and Rear wheel alignment (4×4)

Push Pull Runout /Setback / Thrust angle compensation

Lift level compensation at adjustment level

Unlimited memory for vehicle specifications

Option for selection of vehicle specification during alignment

Power failure data protection

Automatic tracking of Left & Right turns for Caster/Kingpin measurements

Adjustment of Camber in wheel Jacked-up position & Toe curve measurement

Rear Setback & Track width difference,

Toe adjustment in single Tie rod vehicle, Vehicle geometry measurements

Effortless Toe (Easy Toe) adjustment program

Camber measurement at Zero Toe

Drag link adjustment

Toe out on Turns & Lock angle measurements

Animated pictorial display of angles during alignment

Zoom in option for live parameters

Two Color Bar display for adjustment of all angles

Quick Wheel Alignment program by user defined

Data Manager Software for storing alignment results

Customer Address in printout & customer data edit option

3-D Pictorial & Two color text printout

Multi-lingual program & Voice prompt

Two wheel Alignment program by fixing only front two target plates
