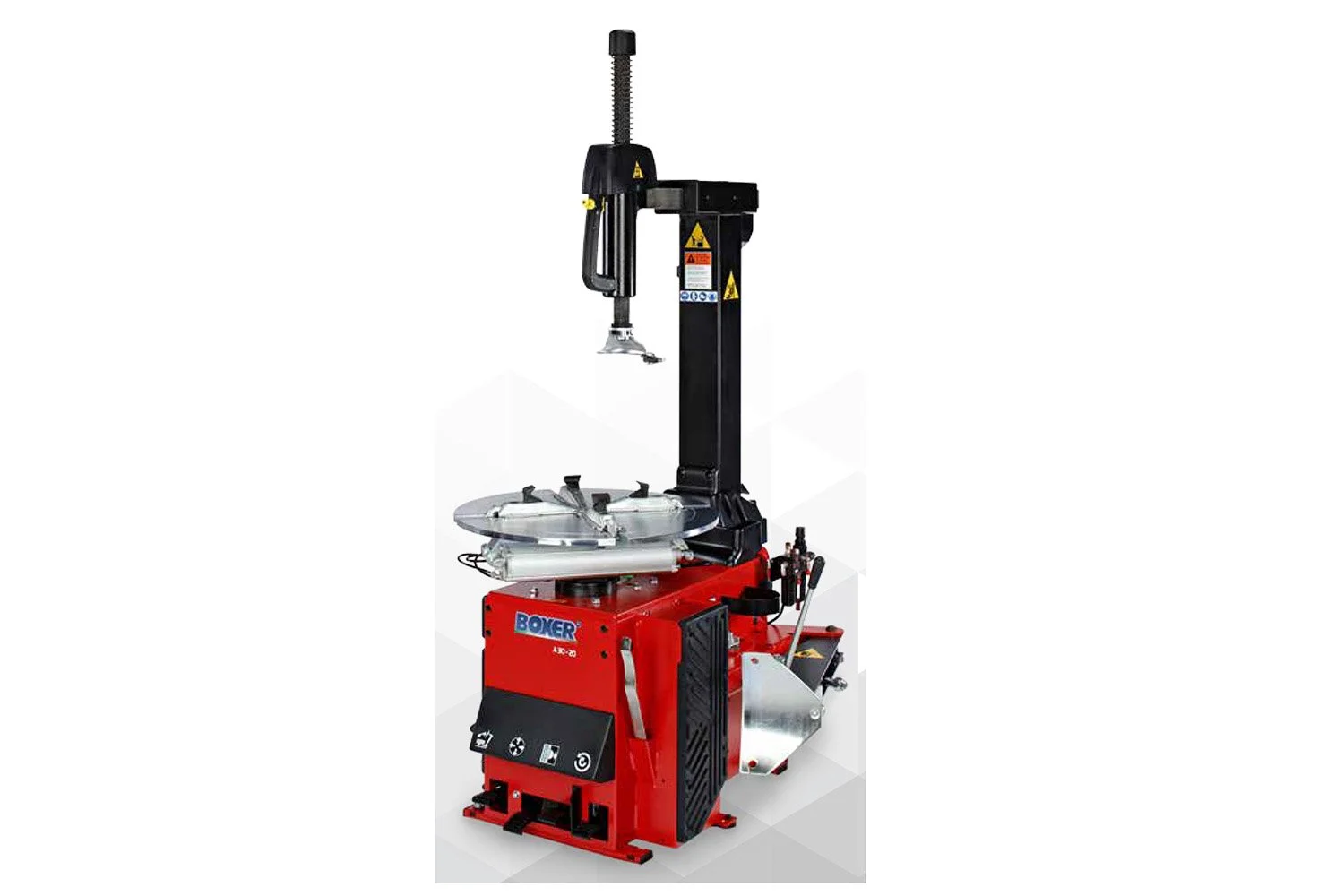

The pneumatic tilt-back post tyre changer with low footprint and 20" outside clamping capability ideal for use in general service shops and low volume tyre shops

Pneumatic control such as tilting of the post and locking of the post in working position combines user-friendliness with high precision

The strong and rugged design of all components ensures long life

The double-acting bead breaker cylinder ensures gentle handling of rims

The bead breaker is provided with a large anti-skid rubber pad to protect tyres and rims

Plastic protectors inside the mounting head protect delicate ally rims

The one-part mounting head is manually adjusted in spaced-apart position relative to the rim to avoid any damage

Thr MH320 pneumatic bead assist device is available as an optional extra for low profile and run flat tyres

Rim Diameter                   10"-22"

Outside clamping range     10"-20"

Inside clamping range        12"-22"

Max wheel width                13"

Pneumatic tilt-back tyre changer ideal for the use in general service and tyre shops

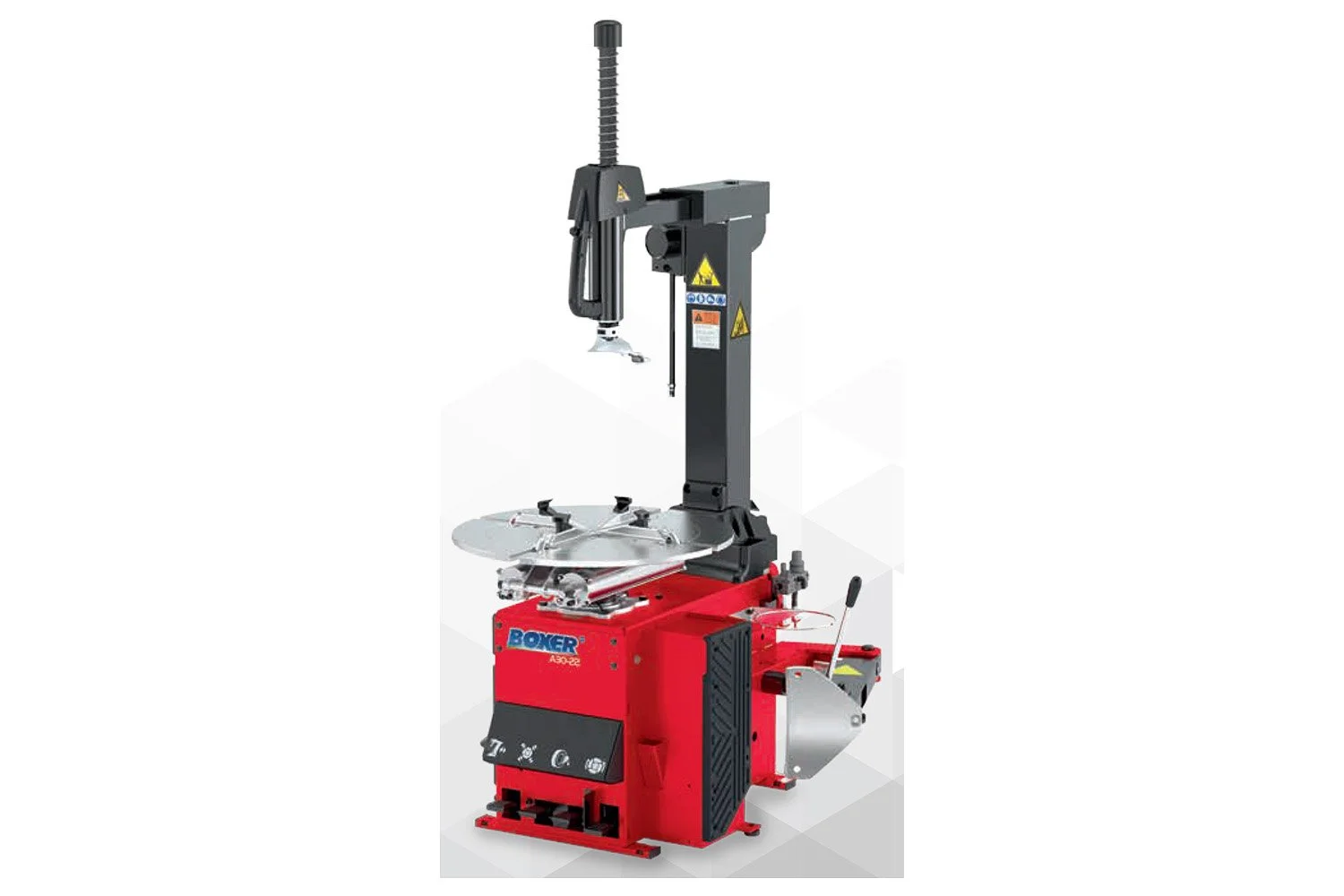

The tyre changer for use in general service and tyre shops with medium tyre service volume - with pneumatic tilt back post, 22" outside clamping capability and PROspeed technology

The A30-22 is powered with the new PROspeed inverter technology

Outer clamping range up to 22"

The machine is equipped with a double-acting bead breaker cylinder

Alloy rims are handled particularly gently as the mounting head and the clamping jaws are provided with plastic protectors

The self-centering four-jaw turntable is controlled by two clamping cylinders - powerfull and safe

The bead breaker is adjustable in three positions, granting high performance and flexibility.The adjustable blade inclination allows adjustment to different wheel diameters

Jaw type             Non adjustable

Rim diameter                    10"-24"

Outside clamping range     10"-22"

Inside clamping range        12"-24"

Max wheel width                13 inch

Wheel diameter                  39.4 inch

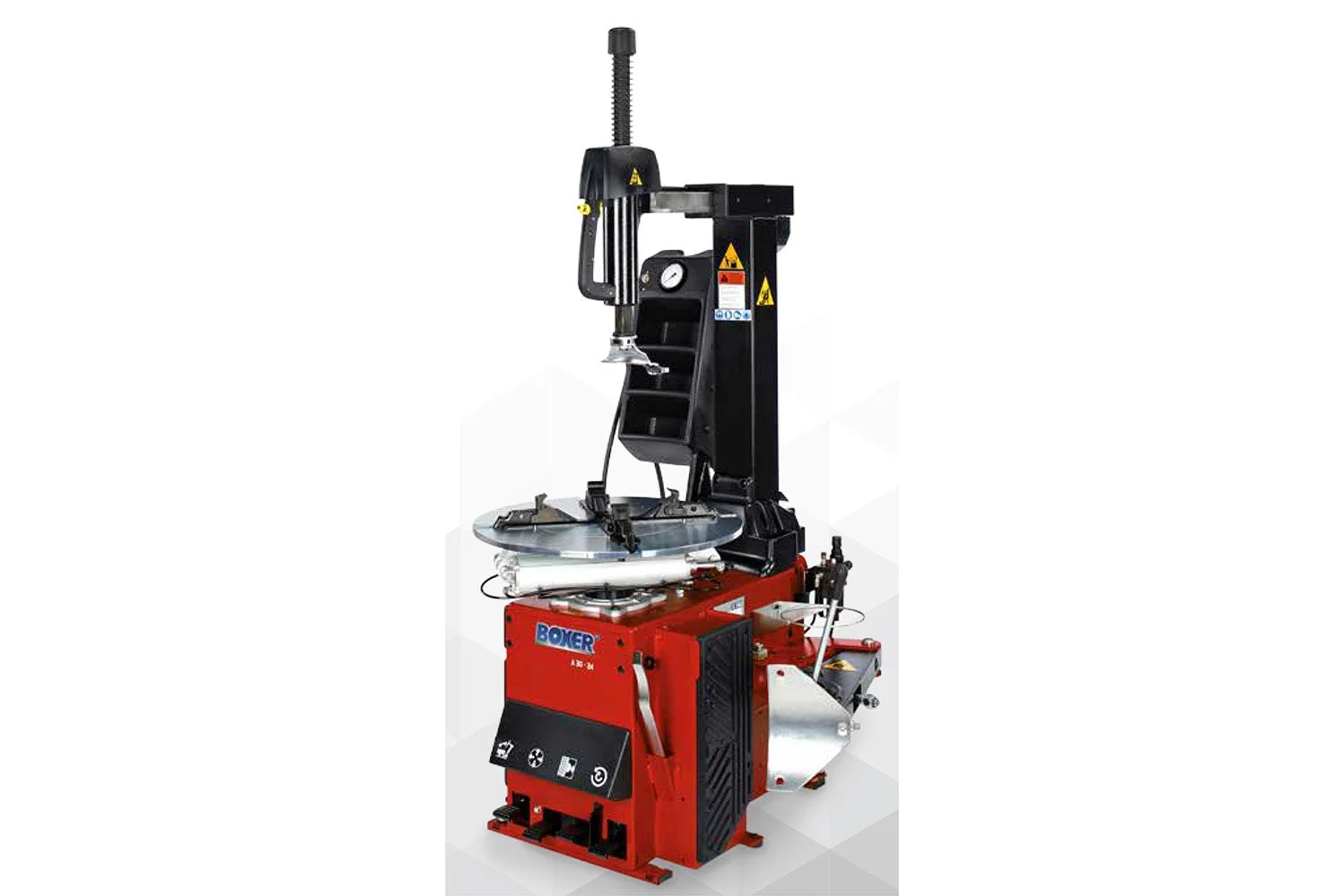

•    The A 30-24 is powered with the new PROspeed inverter technology
•    On A 30-24 the self-centring turntable with redesigned sliding jaws offers a clamping range of up to 24”, even up to 28” with optional adaptors
•    The machines are equipped with a double-acting bead breaking cylinder and an oversize bead breaker blade which protect tyre and rim
•    Alloy rims are handled particularly gently as the mounting head and the clamping jaws are provided with plastic protectors. The one-part mounting head is manually adjusted in spaced-apart position relative to the rim to avoid any damage

•    The self-centring four-jaw turntable is controlled by two clamping cylinders – quickly and accurately
•    The bead breaker is adjustable in three positions, granting high performance and flexibility. The adjustable blade inclination allows adjustment to different wheel diameters
•    For convenient and accurate inflation the machines come standard with a pedal-operated tyre inflator and a precision gauge fitted on the post
•    The tool box with integrated pressure gauge keeps tools and valves within easy reach of the operator

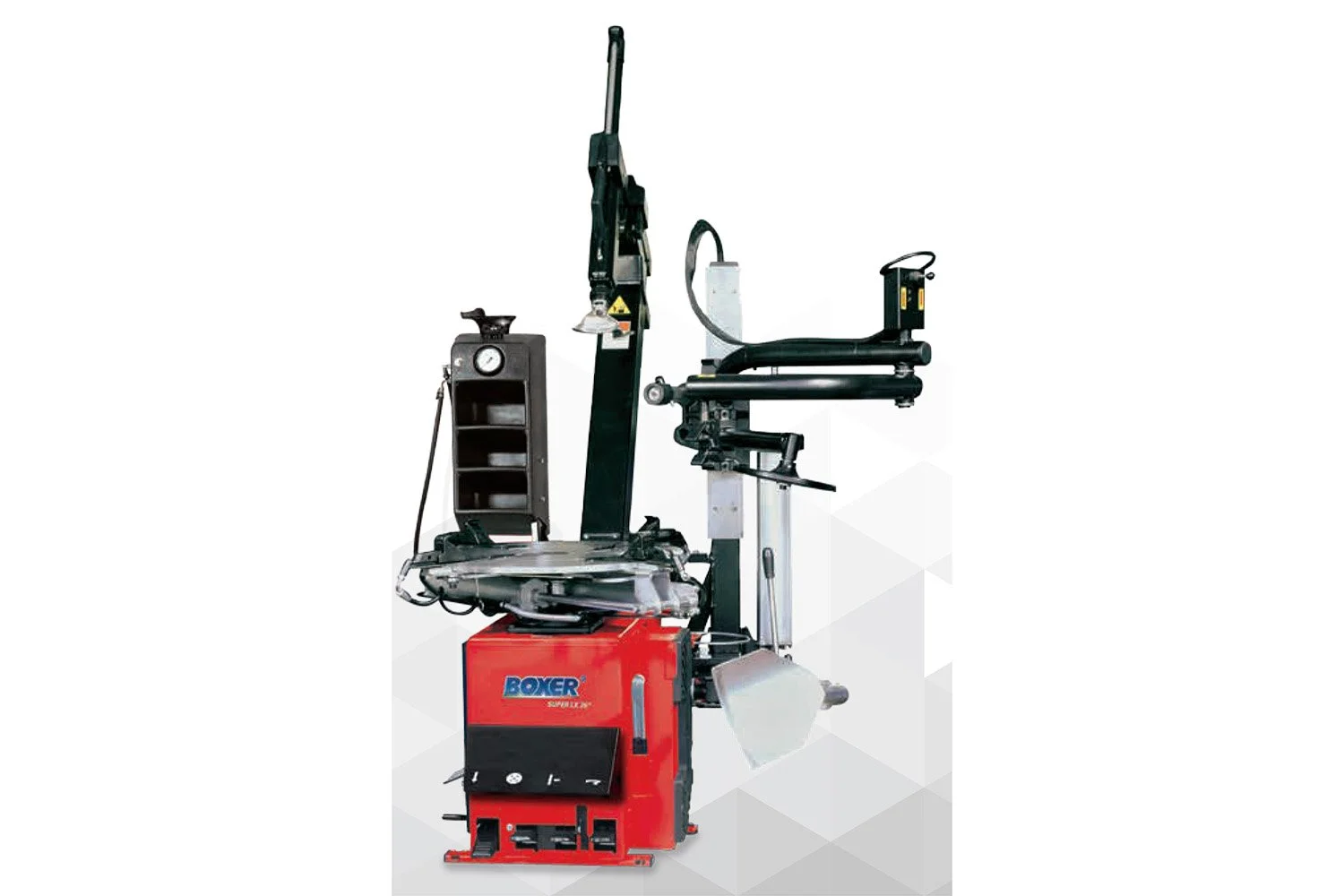

The tyre changer for use in high-volume tyre shops and dealerships - with pneumatic tilt- back post, 24" outside clamping capability, 15" maximum wheel width and PROspeed technology.

Also available with mounting tool MH320 for handling run low profile and run-flat tyres

Outer clamping range of up to 24"

A double-acting bead breaking cylinder and oversized bead breaker blade to prevent damage to rim and tyre. Bead breaker arm is adjustable

Alloy rims are handled gently as mounting head and clamping jaws are provided with plastic protectors

Pneumatic pedal-operated tilting adds user-friendliness. Pneumatic locking of the post in working position ensures precision

The self-centering off-centre turntable with four sliding jaws is controlled by two clamping cylinders - quickly and accurately

Super LX is powered by the new Prospeed inverter technology

Pedal-operated inflator

Jaw type                        Adjustable-sliding

Rim diameter                  10"-24"

Outside clamping range   10"-24"

Inside clamping range      12"-24"

Max wheel width              15"

Wheel diameter                39.4"

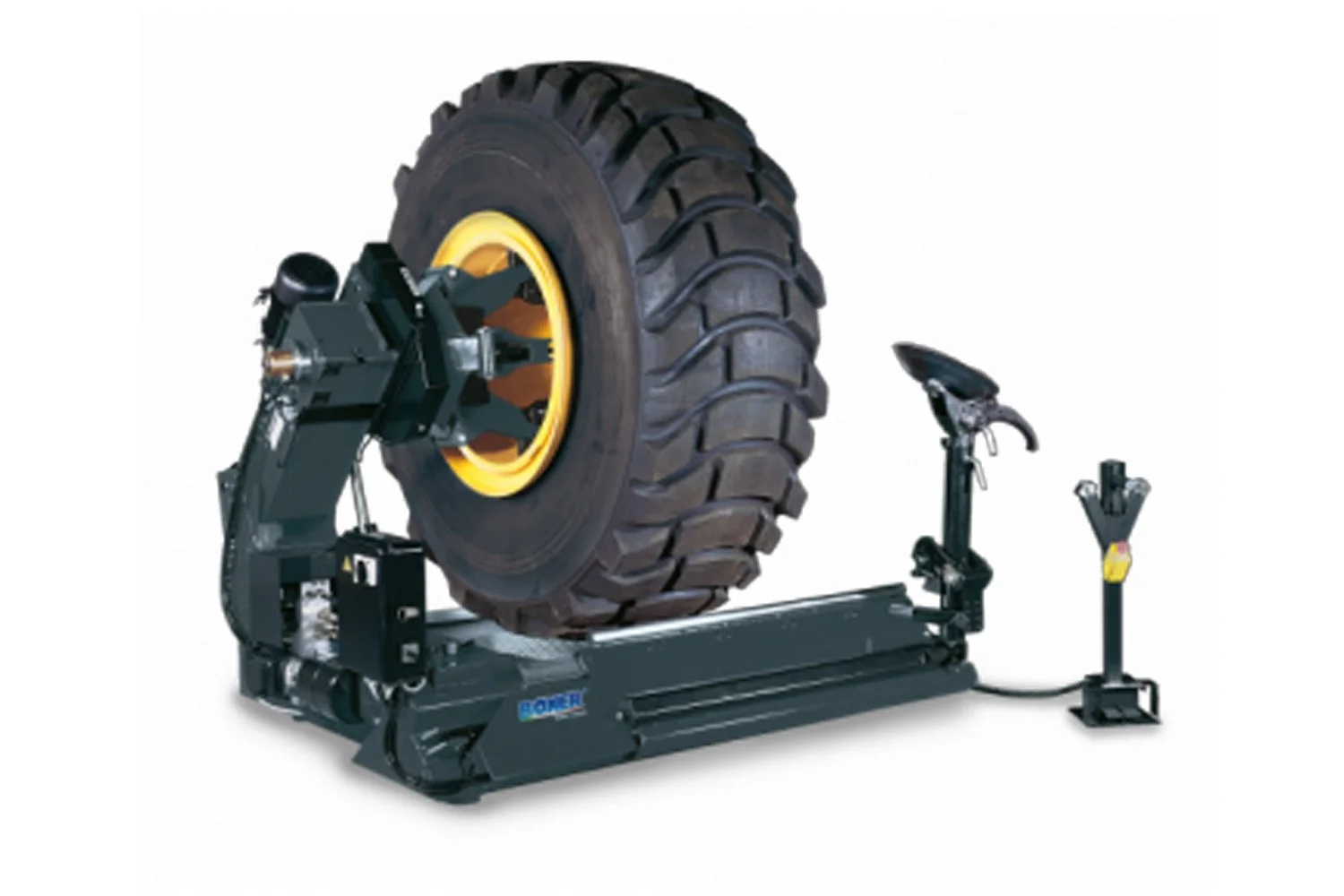

• The compact tyre changer, for rims of 14 – 44“: ideal for tyre shops for mounting and demounting truck, bus, agricultural vehicle and earthmover tyres

• Patented bead breaker disc for increased bead breaker effort

• Massive chuck construction allows intensive use.

• Exclusive tilting jaws ensures accurate wheel clamping.

• Eight position switch allows operation of two controls simultaneously.

Rim clamping range 14 – 44 inch

Rim clamping range incl. extensions 44 - 56 inch

Max. wheel width 43/ 1100 inch / mm

Max. wheel diameter 90”1/2 / 2300 inch / mm

Max. wheel weight 1500 kg

Bead braking force 33 kN

Chuck speed 4/8 UpM

Chuck motor rating 1.5 - 2.2 kW

Hydraulic motor rating 1.5 kW

Dimensions (W x D x H) approx. 1800 x 2000 x 930 mm

Weight 945 kg

Power supply 400 V 3ph 50 Hz

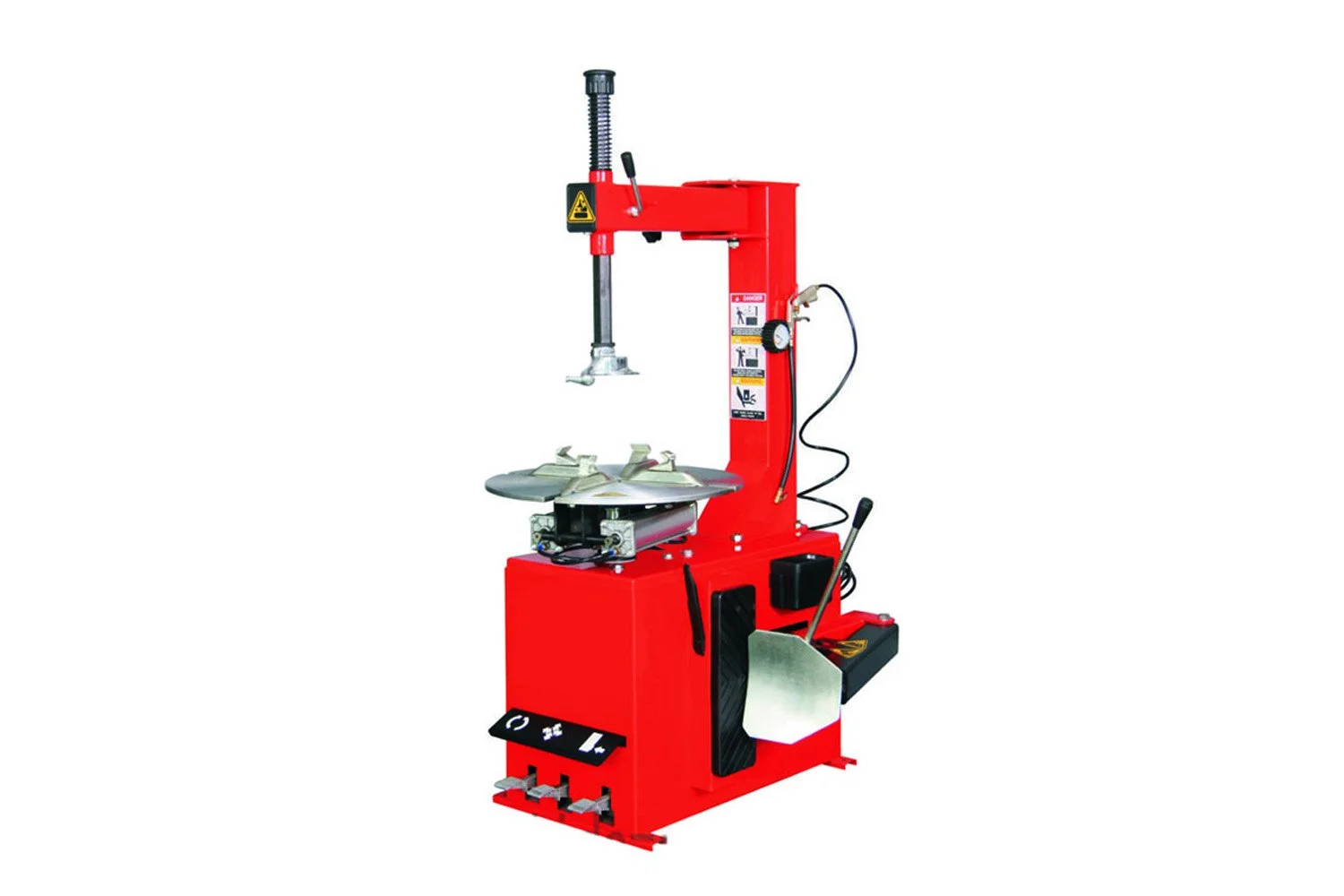

LD-900 is an economical and practical model with semi-automatic side arm swing design.
1. It suit for tyre of 11”-20” , and can clamp outside 18” aluminum rims,
2. Suitable for change a variety of middle and small vehicle tyre.
3. Product has passed CE certification from EU.

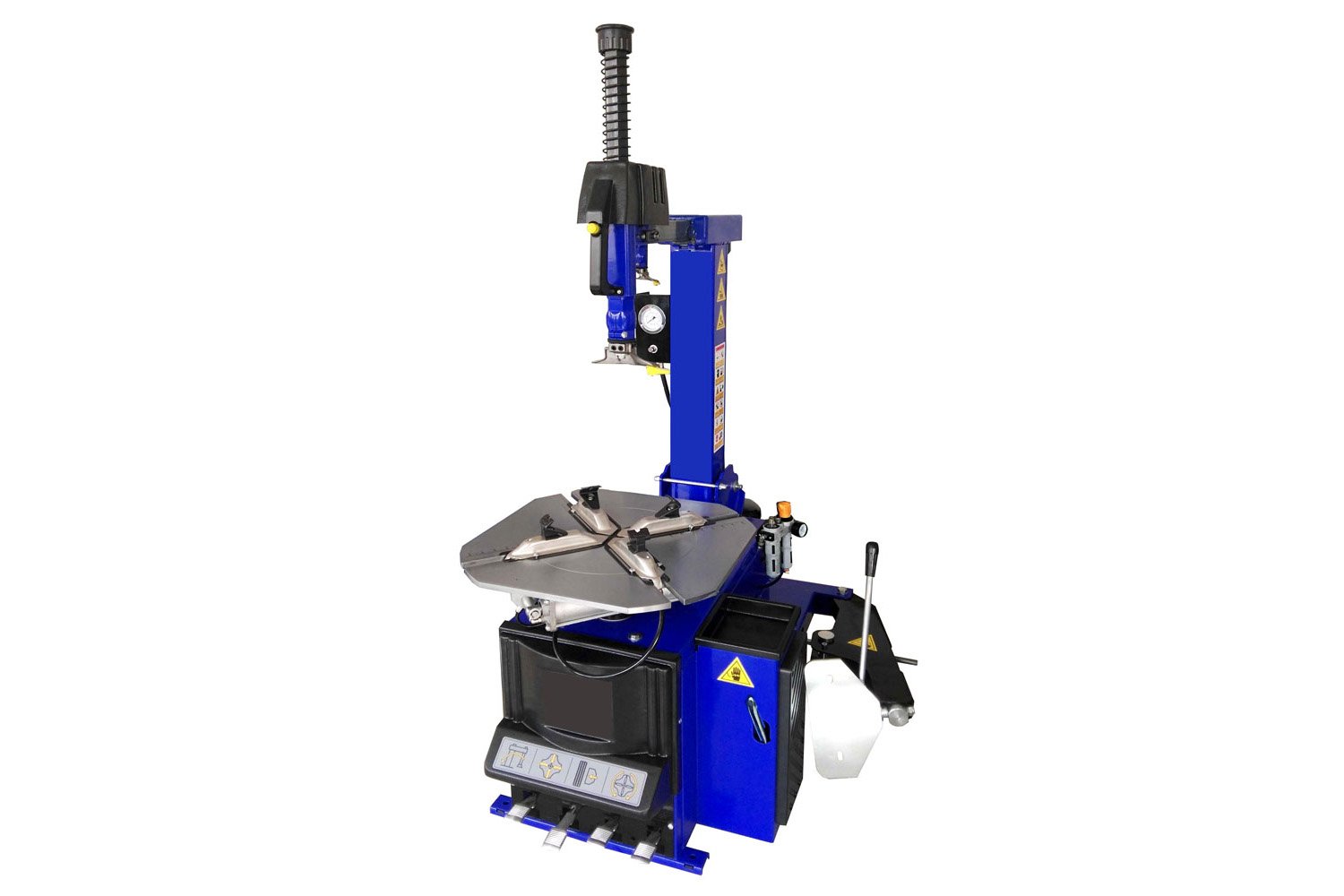

LD-940B High-Performed semi-automatic 4 foot pedals tyre changer, especially for large, low-profile tyre change.

1. Optional jet blast, left side installed control pedal to help vacuum tyre lip closely tight to rim instantly. Jaw with jet-blaster option for wide range of wheels.
2. Plastic cover for mounting head, clamps, lever and bead breaker to protect tyre from damage.
3. Has the center orientation device enable the tyre keep concentric circle with the turntable after their position fixed instantly.
4. Tilting automatic orientation function by pedal controlled and make the operation more easy and flexible.
5. Hexagonal bar and square bar adopt pneumatic double-locked device ensure safety.
6. Turn plate washing chute is equipped with wear - resistant gasket, long life service the machine.
7. With CE certificate.

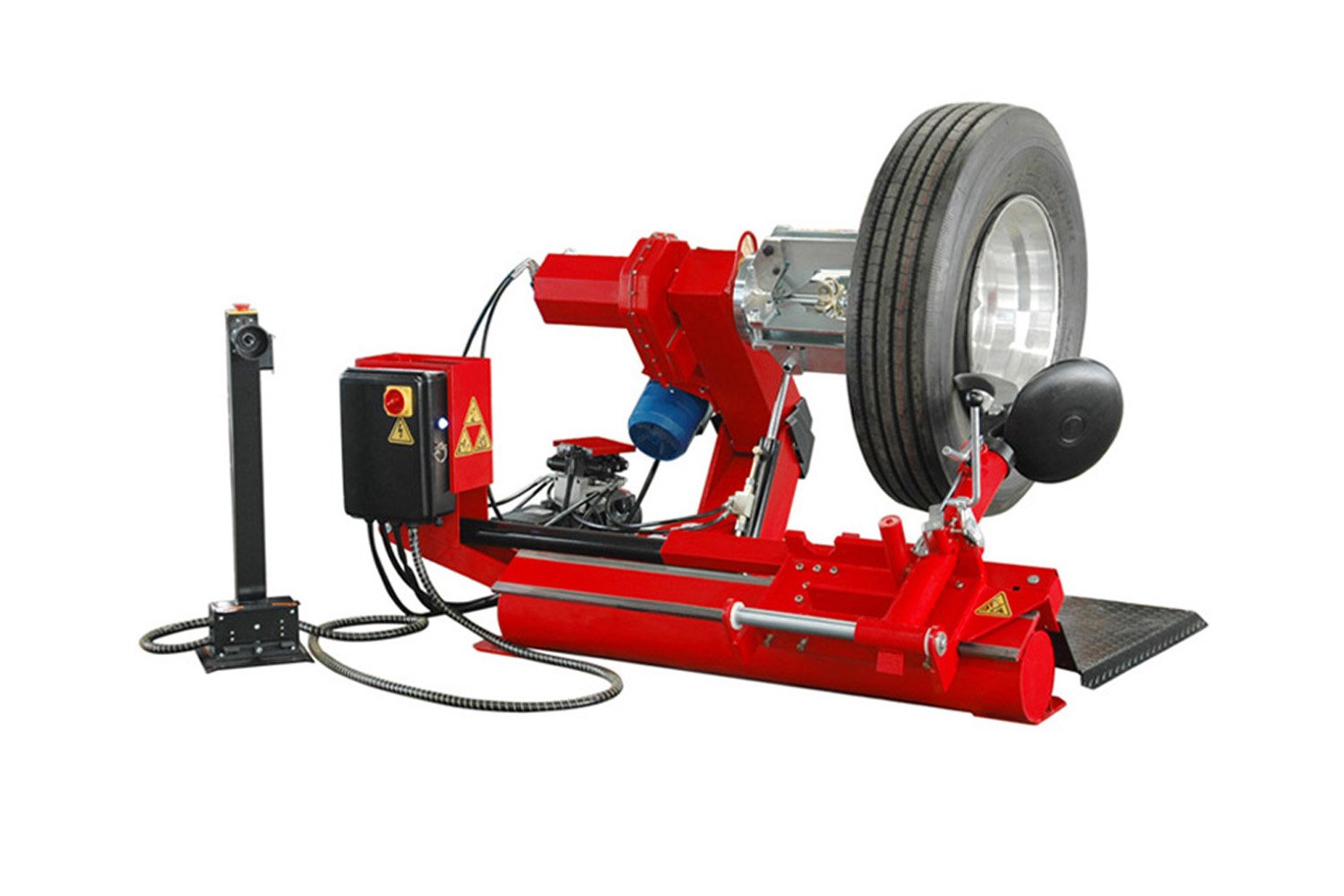

All movement of the working parts are guided by the movable control platform, particular lysuitable for handling truck wheel, farm wheels, passenger car wheels and industrial vehicle wheels between 14" and 26" with deep grooved rims, with ring. It is a ideal mechanized equipment for maintenance wheel, for it saves time and labor with high efficiency, which does not damage to the inside of the rubber wheel and rim.

◎Full automatic control working arm lift
◎Movable control platform
◎Working arm with quick rotation system
◎Four oil cylinder
◎The product has passed CE certification

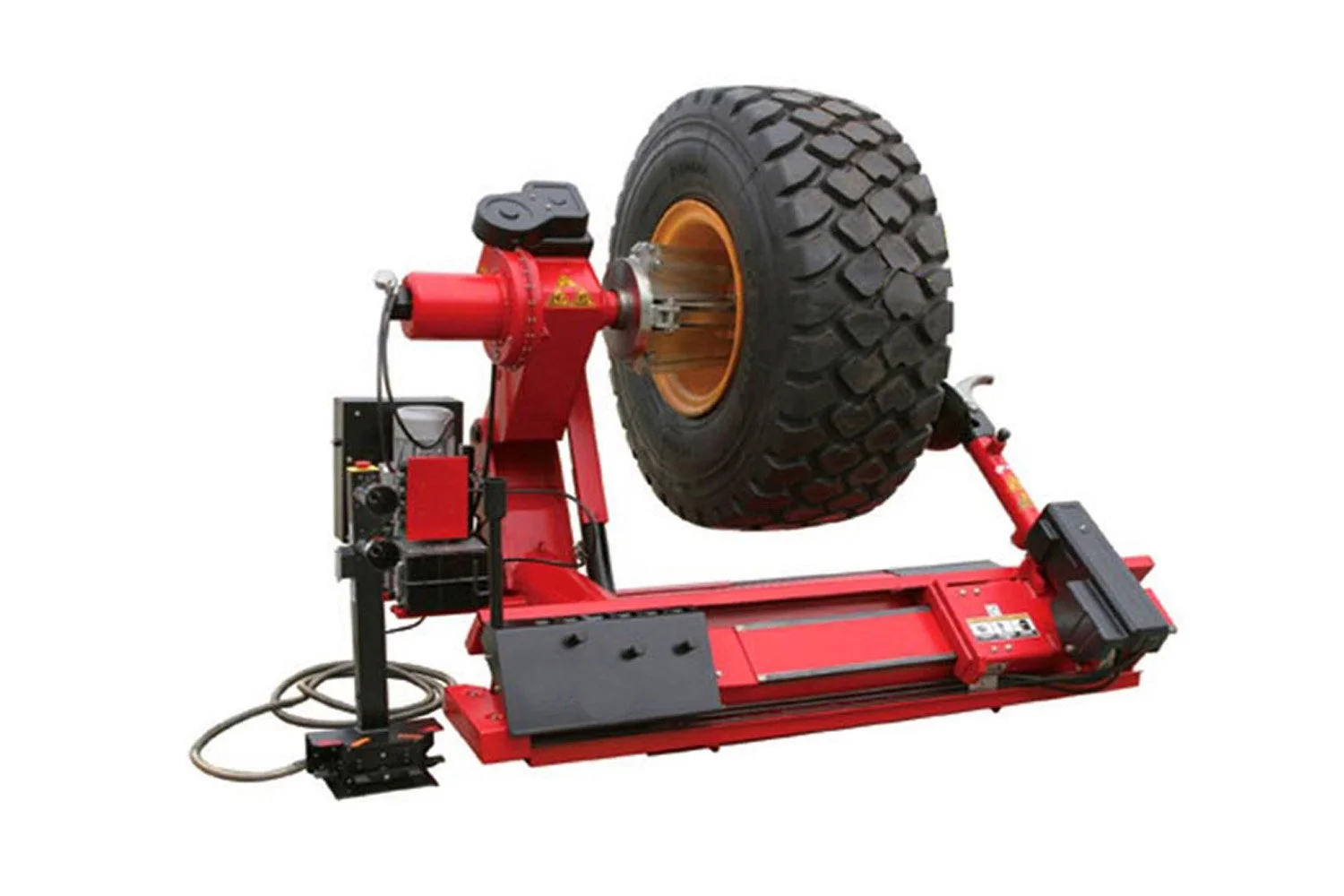

All movement of the working parts are guided by the movable control platform, particularly suitable for handling truck wheel, agricultural wheels, passenger car wheels and industrial vehicle wheels between 14" and 56" with deep grooved rims.
It is an ideal mechanized equipment for maintenance wheel,for it saves time and labor with high efficiency, which does not damage to the inside of the rubber wheel or rim.

◎Full automatic controlling for lifting and falling of the working arm
◎Movable control platform, convenient for operation and observation
◎Working arm with quick speed rotation system and reversible rotation suitable for changing different type of tyre&wheel
◎Four oil cylinder
◎The product has passed CE certification
